1. Philips SP1 Surge Protection: Specifically designed for SSL outdoor lighting, the Philips SP1 device offers comprehensive single-phase protection for line/neutral, line/ground, and neutral/ground connections, meeting the stringent IEEE C62.41 2002 C High standards.
2. Compact and Modern Design: The SP1 device features a small form factor, perfectly aligning with the contemporary design needs of modern technology luminaires, such as LED light engines used in outdoor lighting applications.

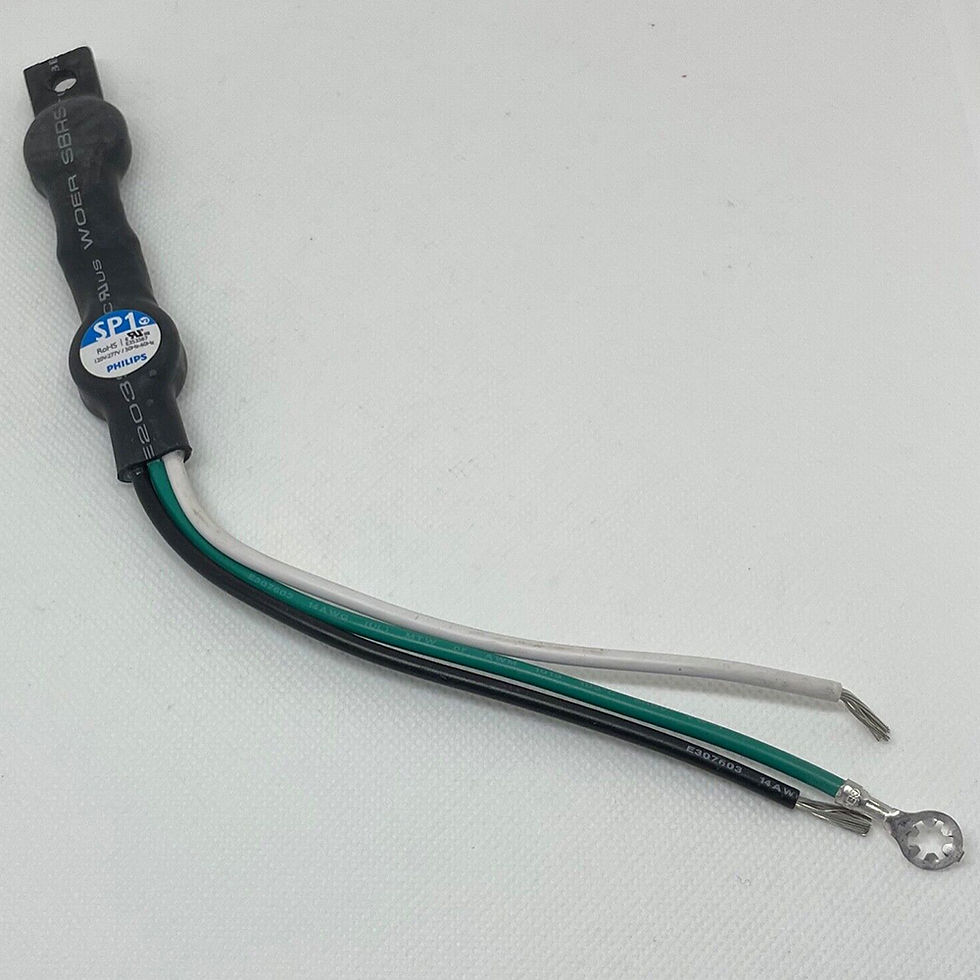

Advance Philips SP1 Surge Protection Device 10KA SPD for Outdoor LED Lighting
General Info
Shipping: USA free shipping
Shipping by: FedEx UPS and other way
Delivery time: 2-4 business days after paymentBigger Quantity Cheaper Price
For Wholesale and Custom Order, Please Contact sales@choierlighting.com
Minimum Same Variant Quantity Discount 20-49 3% 50-99 5% 100+ 8% Product Info
- Model: SP1
- Input Voltage: 120V-277V
- Clamping voltage: 320V
- Maxium energy: 430Joules
- 10KA/KV ratings(8/20μs standard wave)
- Surge location rated Category C
- Operating ambient temperature: -35°C~+85°C
- Storage Temperature and Humidity Range: -35°C~+85°C
- 120-277VAC mains 14 Gauges stranded wires, 105°C, 600V
- Wire connections: Black and white: 12mm skinned and thin platted Green: 12mm skinned with terminal malt
- Mounting hole: 5.5mm
- Agency Approval: UL1449, Type 5
- Up to IP65 rated enclosure for wet locations
Datasheet Download
